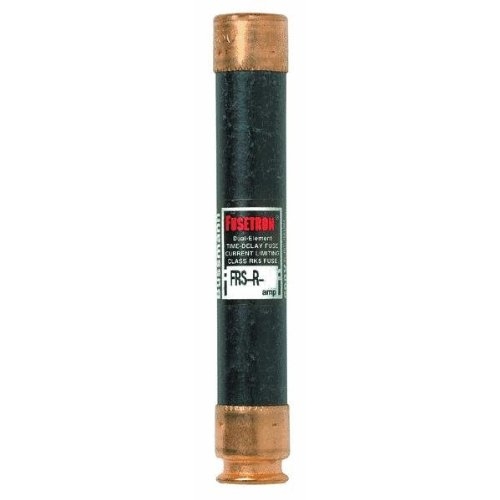

Bussmann FRS-R-20 20 Amp Fusetron Dual Element Time-Delay Current Limiting Class RK5 Fuse, 600V
Bussmann FRS-R-20 20 Amp Fusetron Dual Element Time-Delay Current Limiting Class RK5 Fuse, 600V

List Price: $14.99
Our Price: $10.49
Savings: $4.50

Quantity in Stock:1

Free Shipping
Availability: Usually Ships in 1 to 2 Business Days
Product Code: FRS-R-20
Qty:

Description

Bussmann FRS-R-20 20 Amp Fusetron Dual Element Time-Delay Current Limiting Class RK5 Fuse, 600V, FRS-R-20 Amperage: 20 Features: -Fuse.-When used in circuits subject to surge currents such as those caused by motors, transformers and other inductive components these fuses can be sized close to full load amperes to give maximum over current protection.-Provides motor overload, ground fault and short circuit protection.-Permits the use of smaller and less costly switches.-Helps protect motors against burnout from overloads.-Gives motor running back up protection to motors without extra costs.-Helps protect motors against burnout from single phasing on three phase systems.-Makes it possible to use fuse ampere ratings which are much smaller than those of non time delay fuses.-Considerable cost saving occurs by permitting the use of smaller size switches, panels and fuses themselves.-Provides a higher degree of short circuit protection in circuits which surge currents or temporary overloads occur. Dimensions: -Overall dimensions: 0.81" W x 5" D. Collection: -Fusetron collection.
Features
  • Provides motor overload, ground fault and short-circuit protection
  • Helps protect motors against burnout from overloads and from single phasing on three phase systems
  • Simplifies and improves blackout prevention (selective coordination)
  • Can be applied in circuits subject to temporary motor overloads and surge currents to provide high performance short-circuit and overload protection
  • Protects against low level overcurrent of overloads and will hold on inrush current 5 times greater than the amp rating of fuse for a min of 8 sec
