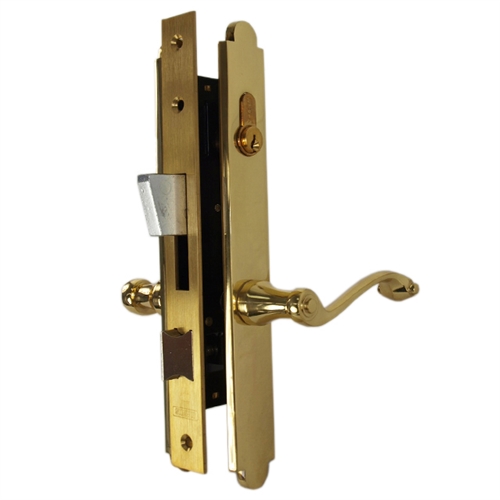

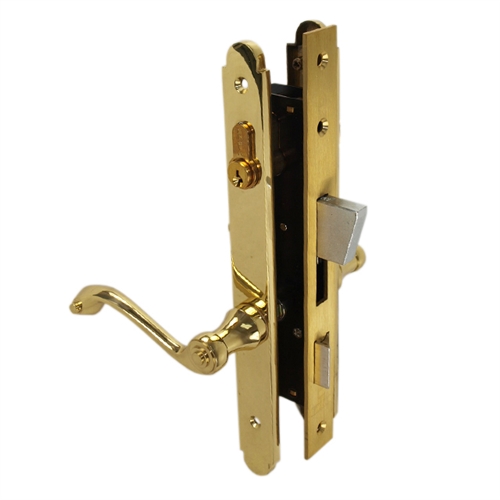

Marks Thinline Slim Line, 2750C/3, Brass, Left Hand, Mortise Entry Lever Plate Trim Set Lockset Double Cylinder Lock Set

Marks Thinline Slim Line, 2750C/3, Brass, Left Hand, Mortise Entry Lever Plate Trim Set Lockset Double Cylinder Lock Set

Alternative Views:
Our Price: $139.95

Quantity in Stock:8

Free Shipping
Availability: Usually Ships in 1 to 2 Business Days
Product Code: 2750C3LH


Additional Keys:

Handle & Key Position:

While Standing OUTSIDE:

While OUTSIDE Door Opens:

Keying:

Master Keying:

Qty:
Description

Marks Thinline Slim Line, 2750C/3, Polished Brass, Left Hand, Mortise Entry Lever Plate Trim Set Lockset Double Cylinder Lock Set. 1" Backset, Deadbolt:1", front: Lock Face Plate is 1" x 9-7/16". Double Cylinder with key on both sides. Commercial Mortise Locksets, For Use with Steel Security and Storm doors. Mounting screw holes spaced at 8-1/4 inches. Backset 1 inch. Thru-bolted solid brass lever plate trim set assemblies, Spring loaded captivated self adjusting spindles with screwless levers.
Features
  • Slimline Mortise Lockset - Used with Steel Security and Storm doors.
  • Reversible Mortise Lock Backset: 1 inch
  • Faceplate Measures: 15/16 inch by 9-1/2 inch.
  • Faceplate Screws: 8-1/4 inches
  • Escutcheon Plate: 1 x 9-3/4
  • Escutcheon Plate Screws: 7-7/16 inches
  • Handle to Cylinder Spacing: 3-5/16 Inches
  • Center of spring latch, to center of Deadbolt 3-1/2 inches
  • Handing can be reversed, Left or Right hand Doors
  • Thru-bolted solid brass lever plate trim set assemblies
  • Spring loaded captivated self adjusting spindles with screwless levers
