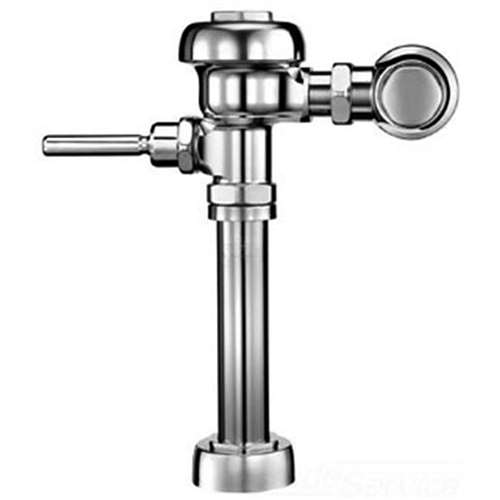

Choose SLOAN the Worlds Leading Manufacturer of Commercial Plumbing Systems. SLOAN ROYAL 110 Closet Flushometer.

Exposed Water Closet Flushometer, for floor mounted or wall hung top spud bowls.

SLOAN 3010100 Flush Cycle:
3.5 gpf 13.2 lpf

Specifications:
This Sloan Flush Valve Quiet, Exposed, Diaphragm Type, Chrome Plated Water Closet Flushometer for left or right hand supply with the following features:

• PERMEX+ Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• ADA Compliant Metal Oscillating Non-Hold-Open Handle with Triple Seal Handle Packing
• 1" I.P.S. Screwdriver Bak-Chek+ Angle Stop
• Free Spinning Vandal Resistant Stop Cap
• Adjustable Tailpiece
• High Back Pressure Vacuum Breaker Flush Connection with One-piece Bottom Hex Coupling Nut
• Spud Coupling and Flange for 1 1/2� Top Spud
• Sweat Solder Adapter with Cover Tube & Cast Wall Flange with Set Screw
• High Copper, Low Zinc Brass Castings for Dezincification Resistance
• Non-Hold-Open Handle, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
• Flush Accuracy Controlled by CID+ Technology
• Diaphragm, Handle Packing, Stop Seat and Vacuum Breaker molded from PERMEX+ Rubber Compound for Chloramine Resistance
• Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance to the applicable sections of ASSE 1037, ANSI/ASME 112.19.2, and Military Specification V-29193
