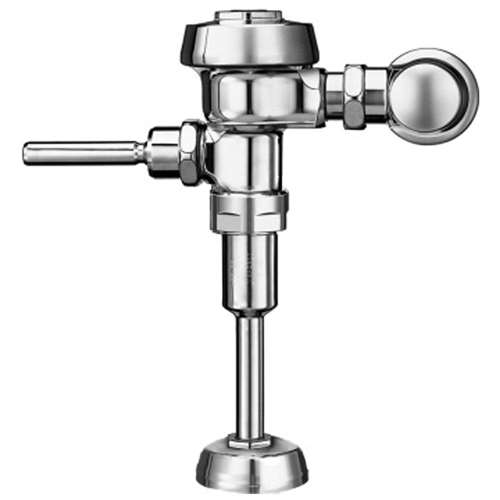

Choose SLOAN the Worlds Leading Manufacturer of Commercial Plumbing Systems, SLOAN REGAL 186 XL FLUSHVLV-URINAL Flushometer.

Exposed Urinal Flushometer, for 3/4� top spud urinals.

SLOAN 3082653 Flush Cycle:
1.5 gpf 5.7 Lpf

Specifications:
Quiet, Exposed, Diaphragm Type, Chrome Plated Urinal Flushometer with the following features:
* ADA Compliant Metal Oscillating Non-Hold-Open Handle
* Control Stop Plug
* Sweat Solder Adapter with Cover Tube
* Cast Wall Flange with Set Screw
* Vacuum Breaker Flush Connection
* Spud Coupling Wall and Spud Flange for 3/4� Top Spud
* Non-Hold-Open Handle and No External Volume Adjustment to Ensure Water Conservation
* Low Consumption flush accuracy controlled by Para-Flo Technology
* Diaphragm, Handle Packing and Vacuum Breaker Molded from PERMEX Rubber Compound for Chloramine Resistance
* 3/4� I.P.S. Wheel Handle Bak-Chek Angle Stop
Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance with the applicable sections of ASSE 1037 and ANSI/ASME 112.19.2.
